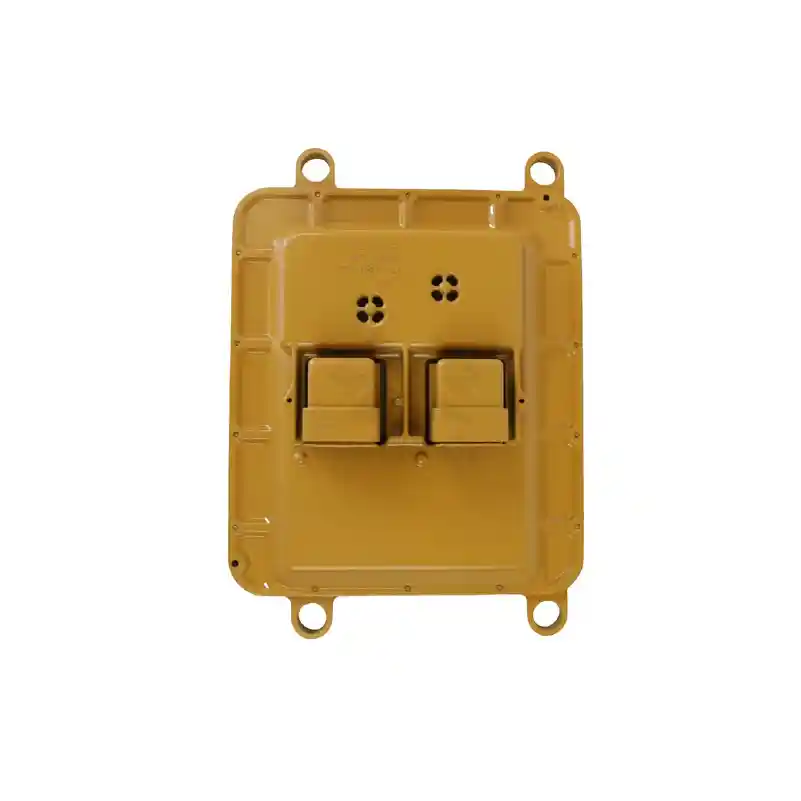

Caterpillar 142-3363 control module repair | 1423363 Controller
Our bench handles your Caterpillar 142-3363 control module repair and returns the unit ready to work. First, you ship the module to our shop in Orlando, Florida. Then our engineers diagnose every fault on the board.
After that, we rebuild the failed sections and test under load. As a result, the controller goes back on the exact machine it came from. Moreover, you avoid the cost of programming a new unit.
Part numbers covered by this service
- 142-3363 and 1423363
- Control group replaced later by 172-9389
Several references describe the same control group. Therefore, check the label on your module before you ship it. Also, send a photo of the connector if you have any doubt.
Machines covered by the Caterpillar 142-3363 control module repair
- Track-type tractor: D6R, D7R, D10R, D11R
- Track loader: 953C
- Wheel dozer: 854G
- Motor grader: 12H, 12H ES, 12H NA, 120H, 120H ES, 120H NA
- Motor grader: 135H, 135H NA, 140H, 140H ES, 140H NA
- Motor grader: 160H, 160H ES, 160H NA
- Wheel loader: 950G, 962G, 980G, 992G
However, serial ranges matter across this family. Consequently, we record your machine model before we start.
Symptoms that bring these units to us
Most boards arrive with a familiar story. For example, the machine loses a function without warning. Sometimes the technician simply loses the link with the module.
In addition, a blown fuse returns every time the key turns. A failing Caterpillar 142-3363 control module repair often shows more than one symptom. Moreover, oil or water intrusion damages the board over time.
Common faults we fix
- Blowing fuses
- No communication with the diagnostic tool
- Engine shutting down
- Fault codes stored in the unit
- Intermittent faults under vibration
- Oil intrusion
- Water damage
However, many units arrive with more than one symptom. Consequently, we test every circuit before we close the housing.
How our bench tests the board
First, we open the housing and inspect the tracks under magnification. Then we measure the supply rails and the output drivers.
Next, we replace the components that fail the test. After that, the board runs a full cycle on our simulator. As a result, an intermittent fault shows up before the unit leaves.
What to send with your module
Send the module with your contact details and the machine data. First, note the machine model and the serial number. Then add the fault codes your technician reads on site.
Moreover, tell us how the failure appears during work. For example, some units only fail when the machine warms up. As a result, our bench can reproduce the same condition.
What happens before your Caterpillar 142-3363 control module repair starts
We first diagnose the unit and report what we find. However, if the module is not repairable, or if no problem appears, we tell you before any charge. In that case, we return the unit as it arrived.
Warranty and technical support
A one year warranty backs every repair we deliver. Also, our team answers technical questions before and after the job. For example, you can describe the fault codes you read today.
Why trust our bench
Our engineering team carries more than 15 years of experience. Furthermore, we have rebuilt over 10,000 modules to date. Our simulation equipment reproduces the real machine signals during testing.
Order your Caterpillar 142-3363 control module repair
Ready to start? First, read our ECM repair services process. Next, browse the full Caterpillar ECM range. Finally, watch real bench tests on the ECM Engineering USA YouTube channel.
